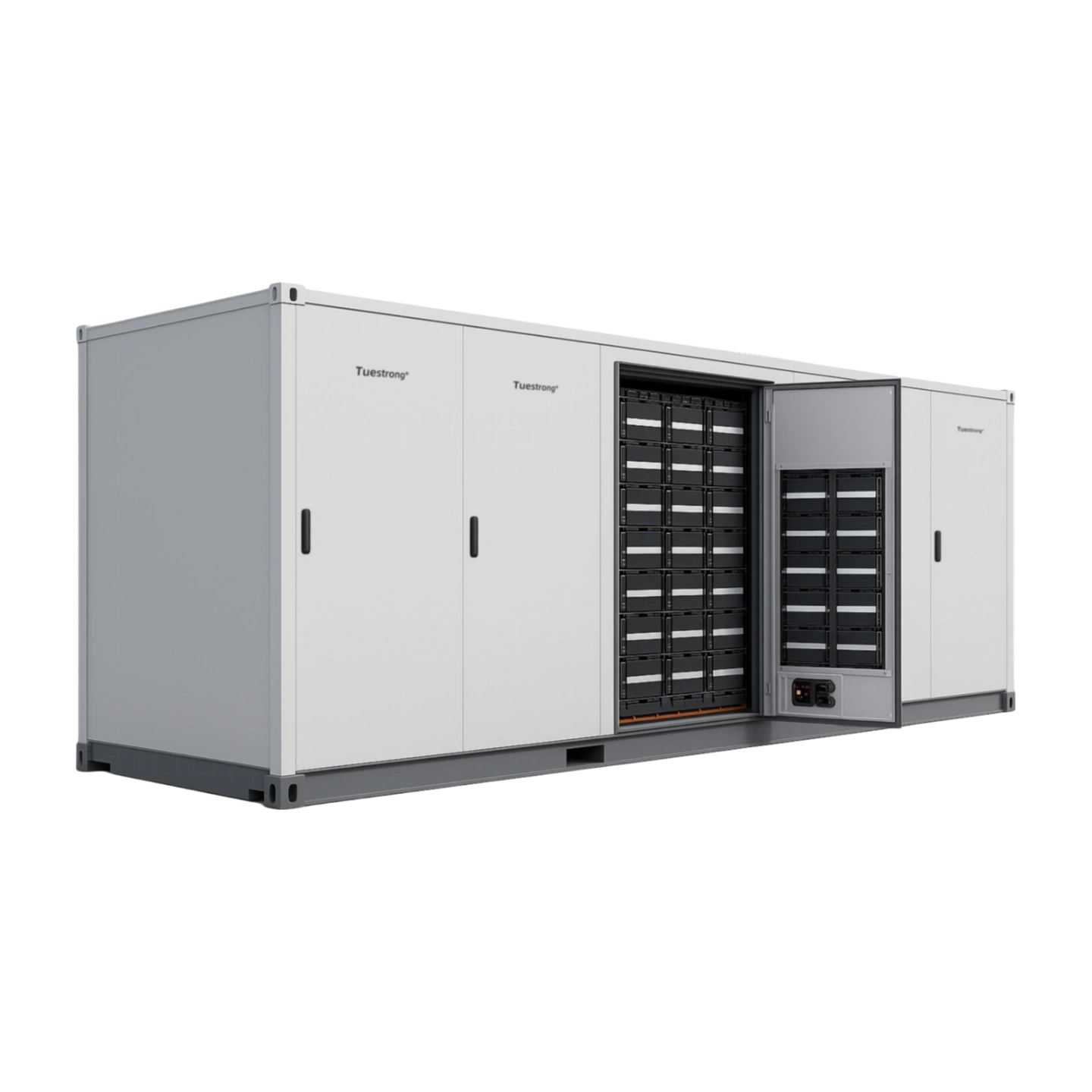

X-Core Gaia
Liquid Cooled Battery Cabinet (excluding inverters)
- Capacity：5644.29 kWh
- Voltage：1331.2VDC
- Size：6058*2438*2896mm
- Weight：≈45T ，P-Rate：0.5P
- Protection level：
- IP55 (Battery Room)
- IP55 (Electrical Room)
- IP67 (Electrical Control Box of Chiller)
- P-Rate：0.5P
- Fire protection systems：
- Heat detector,Smoke detector,H2 detector,Fire control panel,Aerosol(optional),Dry pipe system (optional)，
X-Core Iron
Commercial Industrial Energy Storage All-in-one Cabinet
Capacity：232 - 261 kWh
Rated Grid Voltage(PCS)：400/480Vac
Rated Power：100 - 125 kW
Voltage Range：702-936 VDC
Weight：≈3.5T/≈2.4T
Size：1500x1300x2000mm/
1400x1000x2399mm
Charge and Discharge Efficiency：0.5P
Protection level：IP65
Fire protection systems：
Aerosol,smoke detector, heat detector
combustible gas detector(optional)
deflagr
X-Core Pulse
PV-Storage-Diesel AC/DC Integrated Cabinet
Capacity：50 - 362 kWh
AC voltage：400Vac/230Vac
Rated Power：30 - 100 kW
Weight：≈750 - ≈3230kg
Protection level：IP54
MPPT Range：
200~800Vdc(2 channels)
250~850Vdc(4 channels)
Number of parallel processes：3-10
Size：660*990*1885 mm/
1060*1035*1850 mm
1580*1050*2090mm/
1580*1190*2355mm
X-Core Evo
Liquid Cooled Outdoor Cabinet Charging Test Station
Capacity：206.9Kwh*N
Rated Power：500kW
Voltage：646.8Vdc~831.6Vdc(739.2Vdc)
Protection Level：IP21/54/65
Individual Battery Packs：206.9kwh
Fire protection systems：
Pre-integrated fire suppression system with smoke and thermal depth finder and aerosol or NVAC1230
Weight 600 kg for PCS
2500 kg per one Battery Pack
Size：
1500×1150×24
X-Core
Industrial and commercial energy storage cabinets
Capacity：20 kWh - 100.352 kWh
Weight(KG)：2000 - 2400 KG
Nominal Voltage：200 V - 800 V
Size：1770*1510*2270mm
Cycle Life：≈3,800-5000
Ingress Protection：IP 54
X-Core
Industrial and commercial energy storage cabinets
Capacity：20.48 kWh - 102.4 kWh
Nominal Voltage：200 V - 800 V
Weight(KG)：201 - 1172 KG
Cycle Life：6000
Ingress Protection：IP 20
X-Inverter
30 kW - 2MW
Rated Out Power：30-2510 kW
Capacity Rated Voltage：208 V - 950 V
Protection Level：IP21/54/65
Size：800*800*1900 mm/
1052*1726*2400mm
Weight：620 kg - 8 tons
Charge and discharge conversion time
＜ 30ms
Rated output current：1046 A/2100 A
